NEO PUMP Inverters ITTP7.5 M-NEO | Inverters for pumps and motors. Electromagnets

Series inverters NEO are specific for three-phase centrifugal electric pumps, they are waterproof and specially designed to obtain the best functionality and maximum installation easy. The NEO inverter system combined with an electric pump allows constant control of the water pressurization system of civil and industrial networks and irrigation systems.

This innovative system makes it even easier to make parameter settings and check the data on the display in any motor configuration or system positioning.

Sei interessato? Contact us

Features

Code EF.0884.01.30.01.001

Input Three phase Output Three phase

Max motor-pump power 7.50 kW

Max output current 18.00 A

Communication in group RS485

Mounting type On board motor

Electroil® Series I5 for pumps NEO

01 Main Features

Pump-inverter with three-phase power supply and three-phase output, for on-board motor mounting on electric pumps up to 7.5 kW

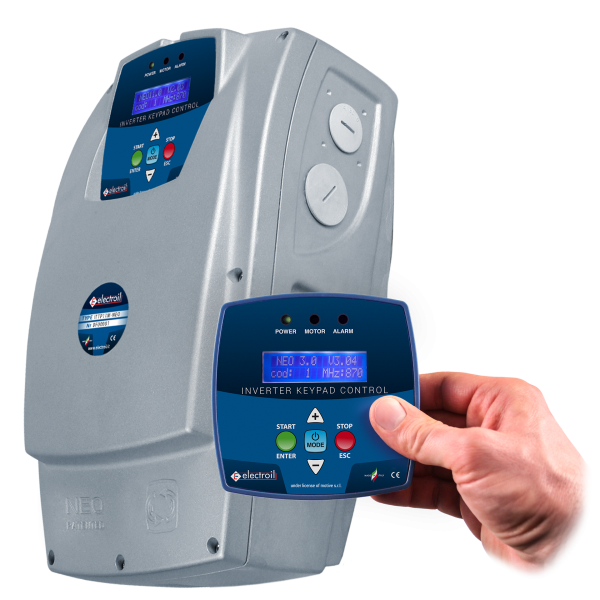

Easy to operate, thanks to the special pull-out wireless keypad with LCD display
High degree of protection (IP65), impermeable to water (not under pressure)
Compact and robust, optimal cooling through the motor fan
K16 pressure transducer, kit of connecting cables to the motor, cable glands and gasket included
Quick installation on the motor with 4 screws and simple commissioning
Suitable for booster sets up to 8 pumps with inverters communicating via RS485 serial
Possible remote control via RS485 serial in Slave mode, via Modbus protocol
Battery-powered clock for starts and stops programmed using the Timer function
Reading and analysis of alarm events via USB using specific PC software
Relay signaling outputs for Motor ON and Alarm and 12Vdc output

Area Download

Technical data

Pump Inverter ITTP7.5 M-NEO

Manuals

Effettuare il login per avere accesso al materiale.

Catalogues

Catalogue Pump-inverters Series

Technical documentation

Application Guide Italian and English Electroil_Modbus_parameters_Univ_V1_06

Offriamo una vasta gamma di prodotti adatta ad ogni esigenza

Our products

Inverter Archimede IMMP1.1 W Guarda il prodotto

Inverter Archimede ITTP1.5 W-BC-LCD Guarda il prodotto

Inverter Archimede IMMP1.8 W-BC Guarda il prodotto

Pump Inverter ITTP15 W-RS-BC Guarda il prodotto

Pump Inverter ITTP2.2 M-RS Guarda il prodotto

Inverter for industrial motors IMTI1.5 M Guarda il prodotto

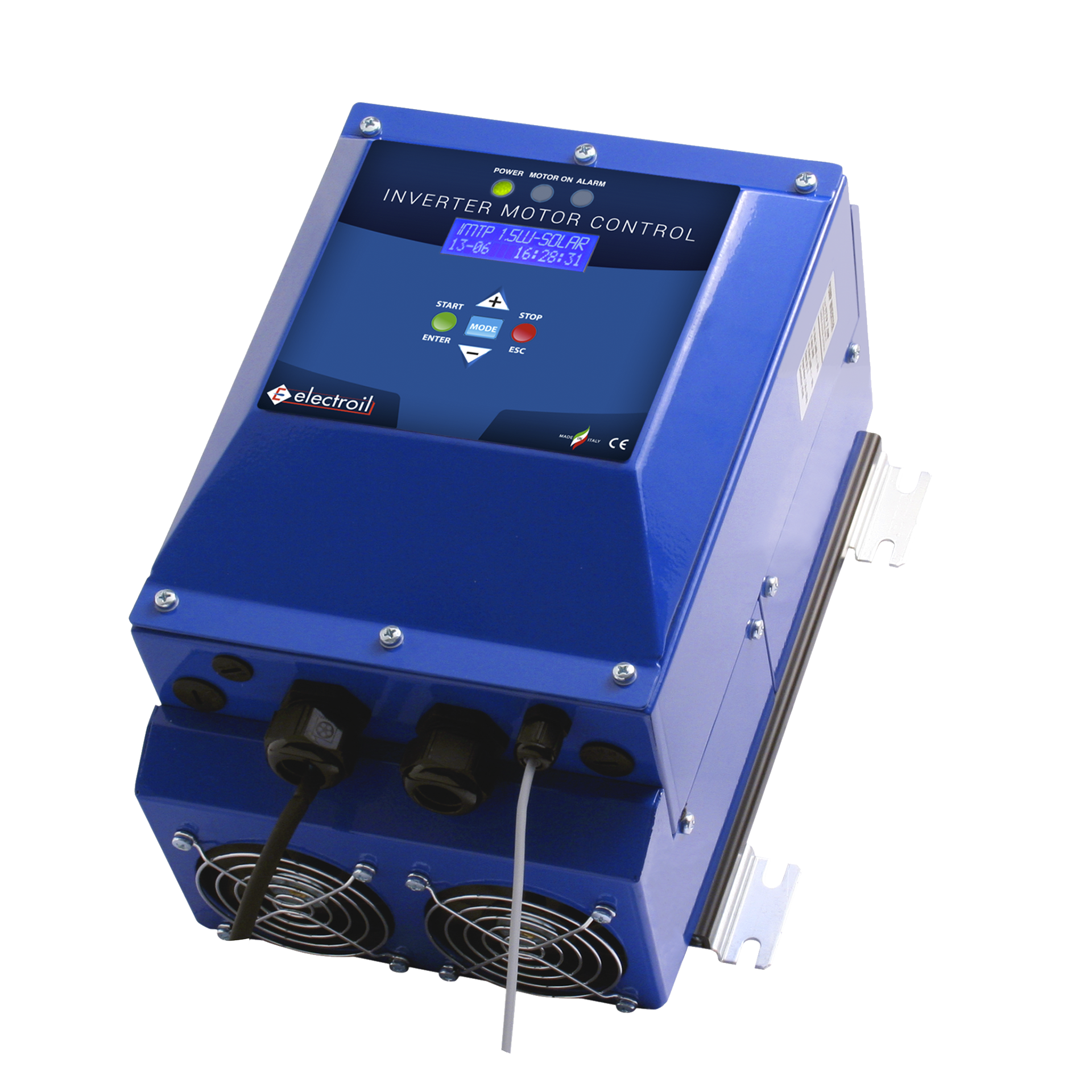

Inverter ICTP1.5W-BC-SOLAR Series Guarda il prodotto

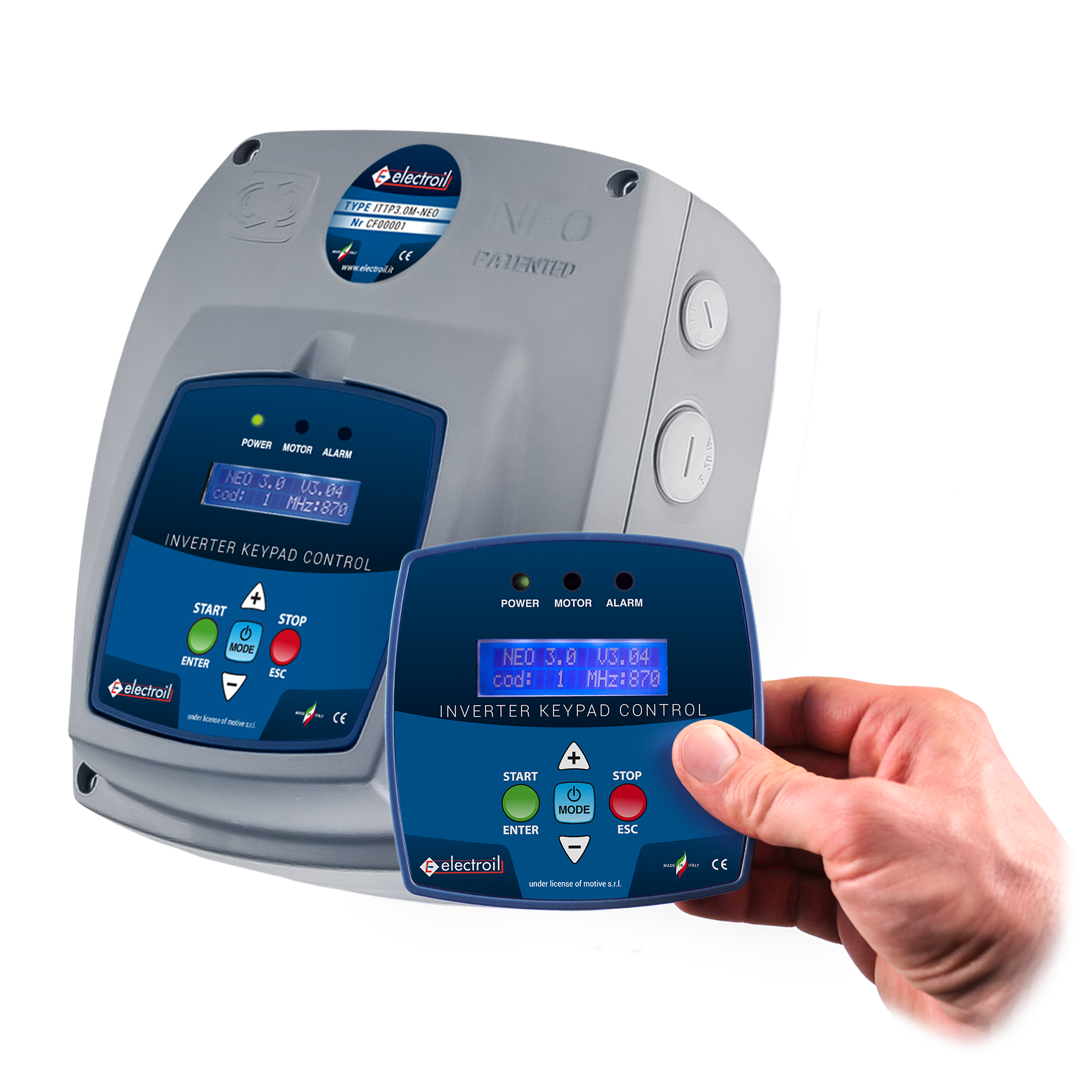

Pump Inverter ITTP3.0 M-NEO Guarda il prodotto
